Use of Jointed Rails

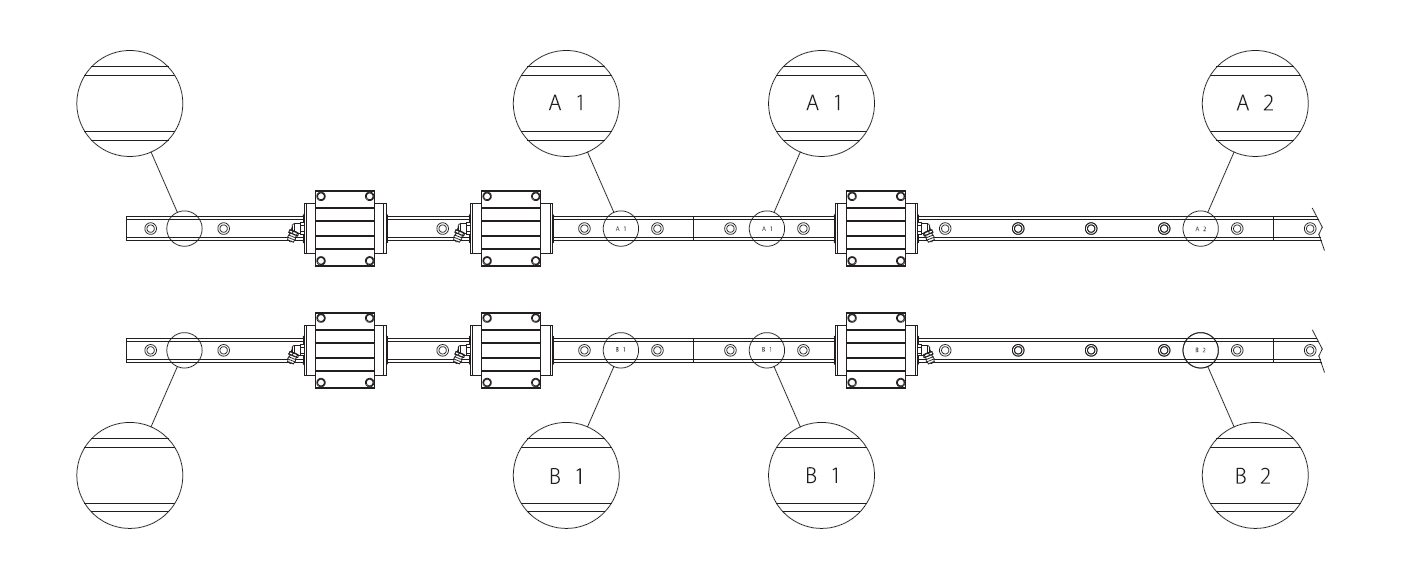

When an over length rail is required, two or more rails can be butt-jointed to the required length. When jointing rails, be sure to match the marked positions correctly as the above figure.

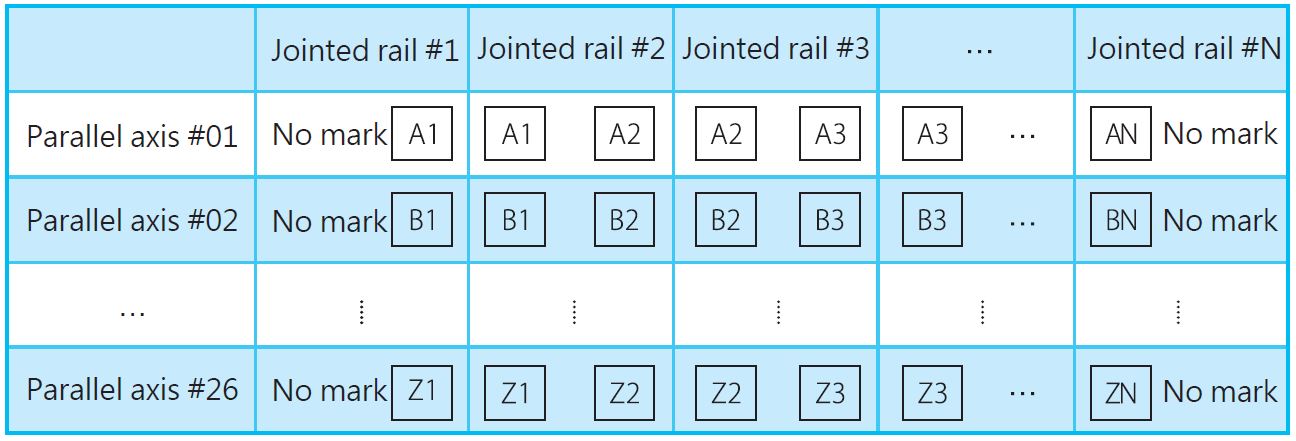

The linear guides will be numbered as the table below:

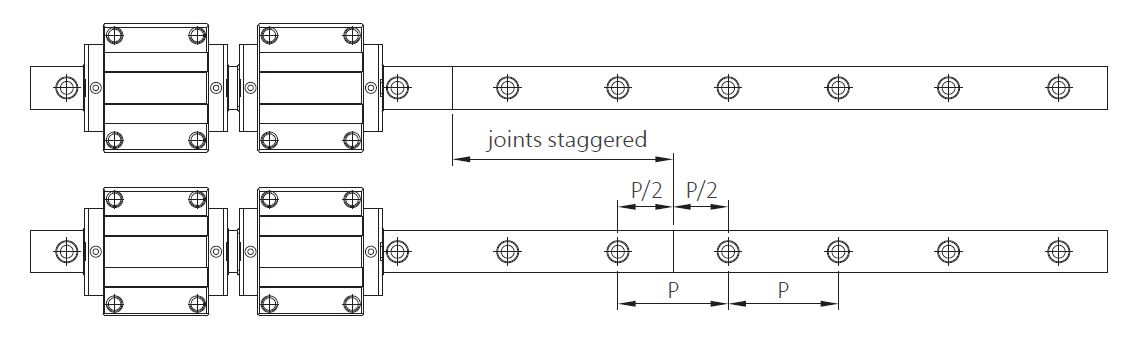

If two jointed rails are used in pair, in order to minimize the deviation, it is recommended to stagger the joint points in these two rails as demonstrated.
